Cox ZTR Ride on Mowers - COX Cruiser 24hp 42" V Twin, ZT-3100 (CZ24C42)
Designed completely from the ground up, our brand new ZTR 42”, 48“ and 52” models are industry stand outs.
Packed with features including our legendary COX Proprietary front scallop deck entry, and pivoting front axle. All models are powered with COX VTwin engines and Hydro-Gear ZT3100 serviceable transmissions.
The All New Cruiser ZTR 42, 48 And 52!

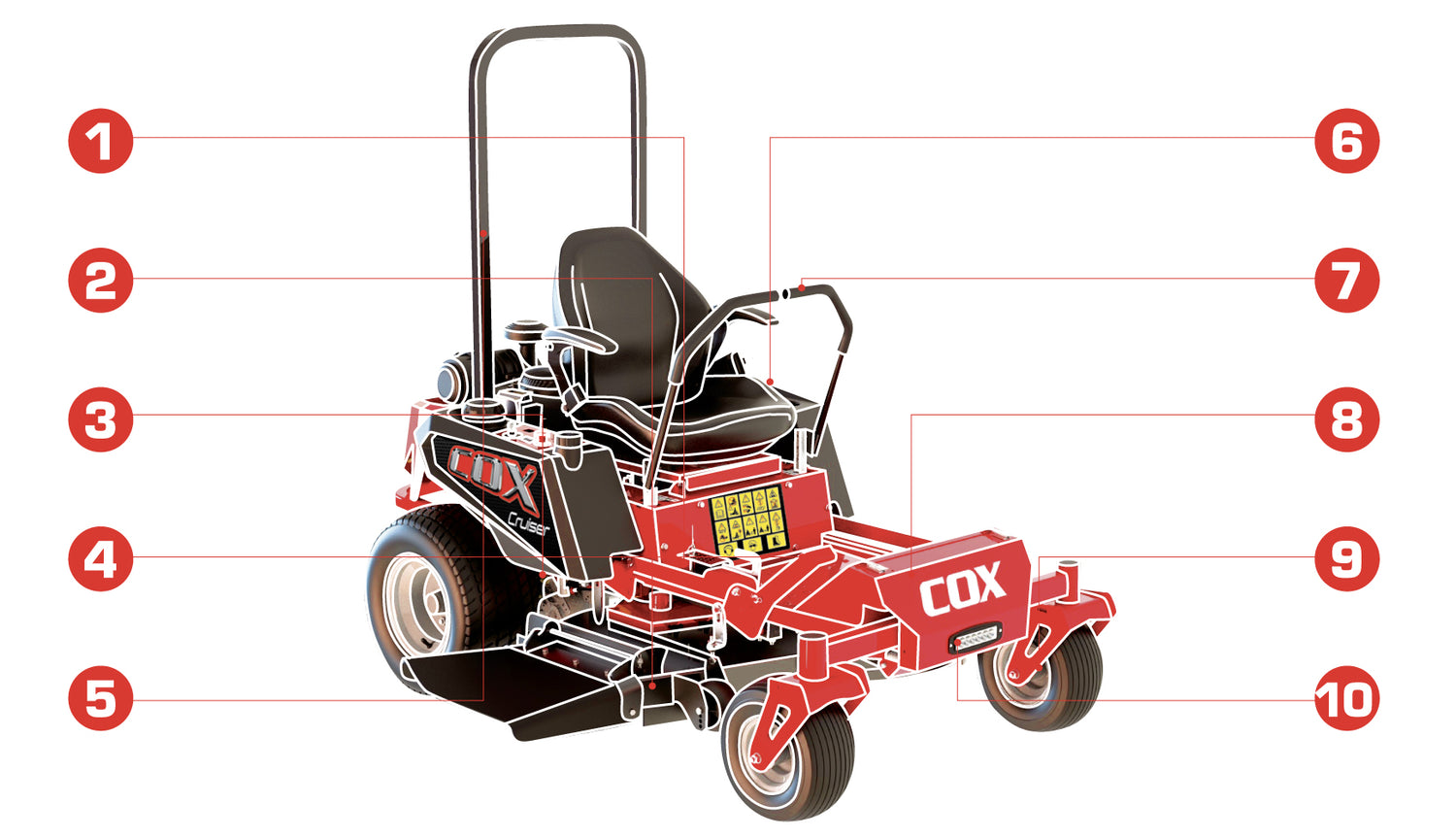

Rugged, Easy To Grip Deck Floor.
Cast Iron Spindle Housing.
20 Litre Fuel Tank For Up To 10 Hours Of Continuous Mowing.
Easy Lift And Foot Operated Height Adjustment.
Optional ROPS Available.
USB Charger.
Fully Adjustable Steering Levers For Operational Comfort.
Storage Box.
Pivoting Front Axle Gives Increased Traction And Slope Stability.
LED Headlight.
| ENGINE | |
| Engine | COX 24hp V-Twin |
| Cylinders | V-Twin |
| Displacement | 680cc |
| Oil Capacity | 2.0LT |
| Engine Warranty | 3 Years Conditional |
| DRIVE | |
| Drive Type | Hydro Gear ZT 3100 Serviceable |
| Ground Speed | FWD 0-12KPH/REV 0-6KPH |
| Drive Warranty | 2 Years Conditional |
| CUTTING SYSTEM | |
| Cutter Deck Width | 42" (1070mm) |
| Blade Engagement | Electromagnetic Clutch |
| Cutter Belt Type | Premium B-Section |
| Height Range | 20mm-100mm |
| Blade Type | Heavy Duty Swing Back |
| CHASSIS | |
| Tyres | 13x500x6 (F) - 20x8-8 (R) |
| Seat | Premium Highback Seat with Armrests |
| Seat Adjustment | Fingertip Adjustment |
| Hour Meter | Standard |
| Construction | Fabricated Steel |
| Fuel Capacity | 20 Litres |
| DIMENSIONS | |
| Length | 2050mm |
| Width | 1100mm |
| Weight | 277kg |
| WARRANTY | 5 Years Conditional |
