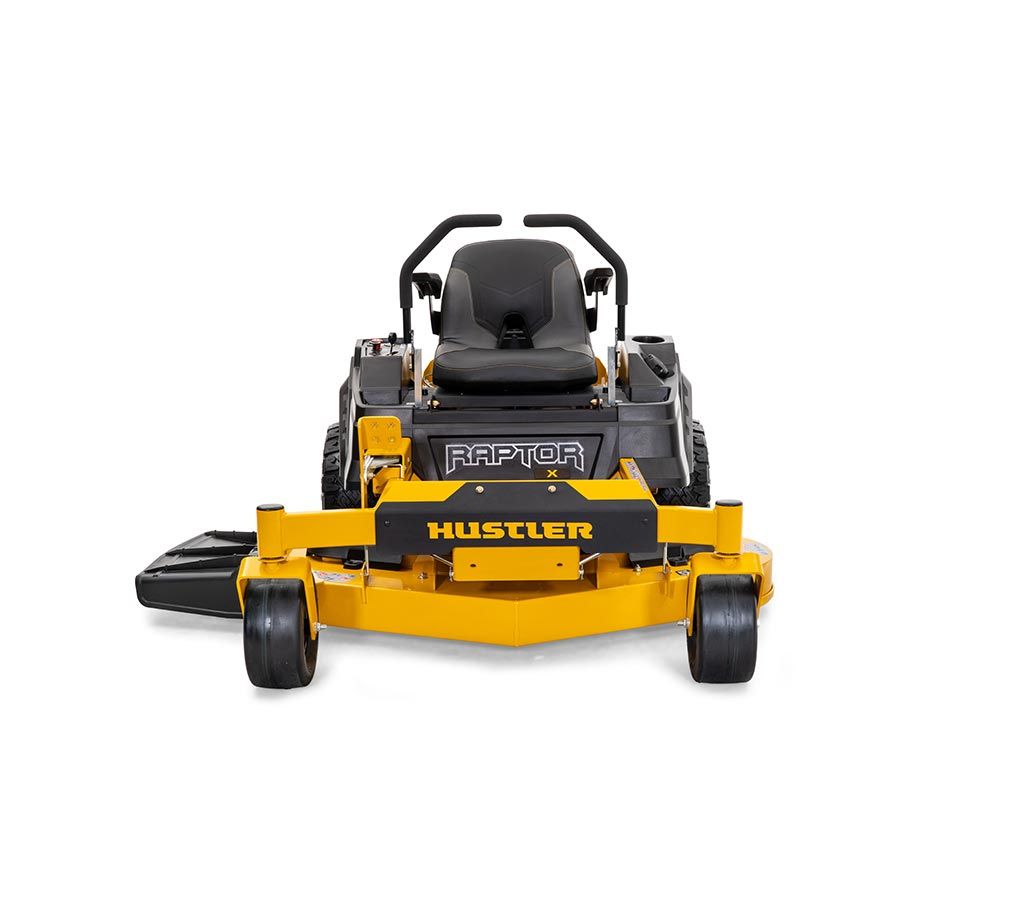

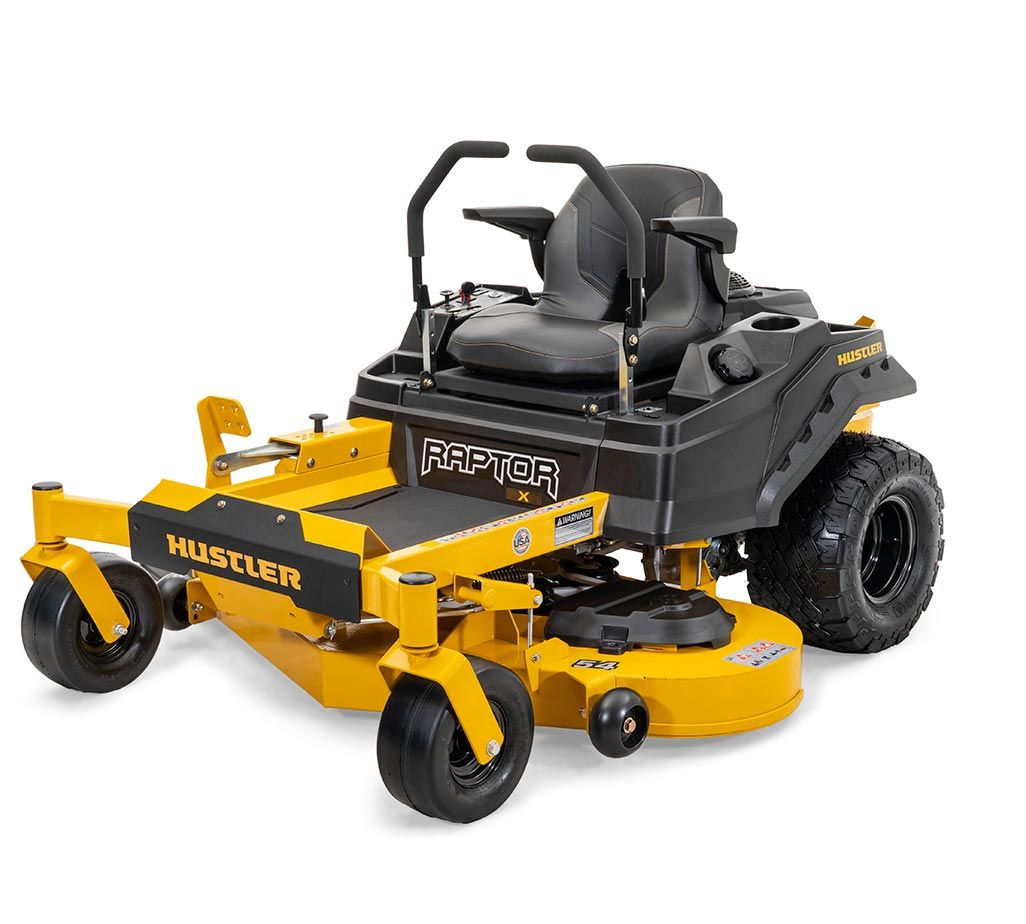

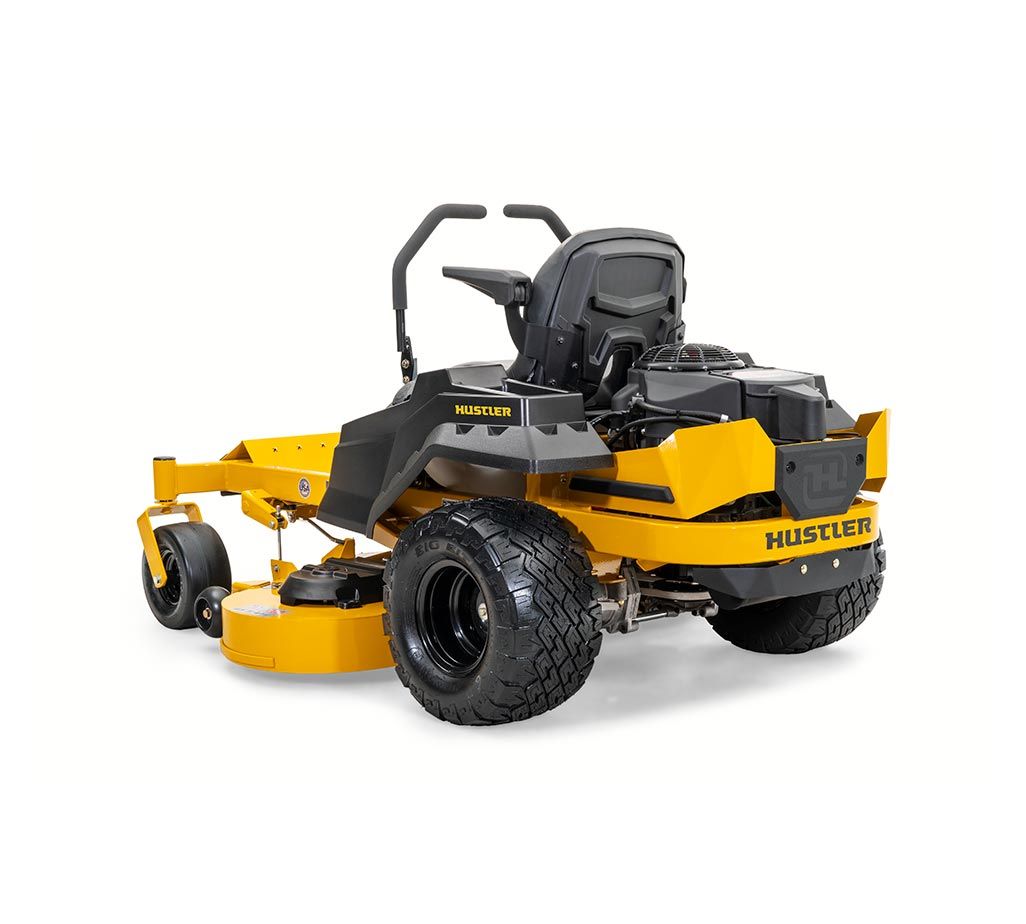

Hustler Raptor X 54 Zero Turn Mower 940502EX
The legendary Raptor X packs all the performance and reliability Hustler is known for into a simple and durable design. We engineer our mowers to be maintenance and service friendly. From the frame to the deck to our trademark steering, the Raptor X delivers excellent cut quality for a well manicured lawn. We’ve put thousands of hours of R&D and testing into the Raptor Series, which is why it’s backed by a 3yr / 300hr limited warranty.
- 54" Cutting Width
- 3 Acres per Hour
- 23HP Kawasaki Engine
- 3 Year, 300 Hour Residential Warranty
Tackle large lawns and properties with the powerful Hustler Raptor X 54 Zero Turn Mower.
Featuring a huge 54-inch cutting deck, this machine can handle even the largest of lawns with ease.
Powered by a reliable 23 horsepower Kawasaki V-Twin engine, the Hustler Raptor X 54 boasts dual Hydro-Gear ZT-2200 transmissions that provides exceptional control and manoeuvrability.
Ergonomic controls, comfortable high-back seat, and foot-operated deck lift system make it easy to operate and customize the mowing height to your preferences.
Built with durability in mind, this mower is designed with a sturdy steel frame and welded steel fabricated deck, ensuring it can withstand years of use.
With its impressive specifications at an affordable price point, the Hustler Raptor X 54 is the ultimate solution for anyone looking for a high-performance zero turn mower.
Say goodbye to endless hours of mowing and hello to a smooth and effortless lawn mowing experience!
* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
| Deck Width & Construction |
54 Inch 11 Gauge Fabricated Cutting Deck
|
|
Blades & PTO
|
3 Blades with electric PTO blade engagement
|
|
Spindles
|
Aluminum with 7 gauge spindle mounts, 1” shaft and double lip sealed ball bearings
|
|
Cutting Height & Adjustment
|
1.5" - 4.5" cutting range with foot assisted deck height adjustment
|
|
Optional Extras
|
Optional Mulch Kit, Optional Catcher Kit
|
|
Ground Speed
|
11.3 Km/h Ground Speed
|
|
Acres per hour
|
3 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
|
|
Fuel Tank Capacity
|
11 L
|
|
Slope Capability
|
15 Degrees
|
|
Engine Type & Specifications
|
23HP Kawasaki FR691V Engine. Air cooled. 726cc.
|
|
Engine Warranty
|
3 Year Engine Warranty
|
|
Transmission Type & Specifications
|
Dual Hydro Gear ZT2200 Hydro Transmissions
|
|
Country of Manufacture
|
Made in the USA
|
|
Chassis Construction
|
1.5" x 3" Welded Tubular Steel Frame
|
|
Rear Wheels & Tyres
|
18" x 10.5" Rear Tyres
|
|
Front Wheels, Tyres & Castors
|
11" x 6" Front Tyres
|
|
Seat Type
|
Bolstered Mid Back Seat with Armrests
|
|
Console Features
|
Cup Holder
|
|
Park Brake
|
Automatic Park Brake
|
|
Maintenance Access
|
Open rear design for easy engine maintenance
|
|
Tow Hitch
|
Optional Tow Hitch
|
|
Minimum Trailer Size
|
5 ft wide, 6 ft Long
|
|
Length
|
1793 mm
|
|
Width (Chute up)
|
1488 mm (Chute up)
|
|
Height (ROPS up & down)
|
1036 mm
|
|
Weight
|
256 kg
|
|
Residential Warranty
|
3 Year / 300 Hr Domestic warranty
|
