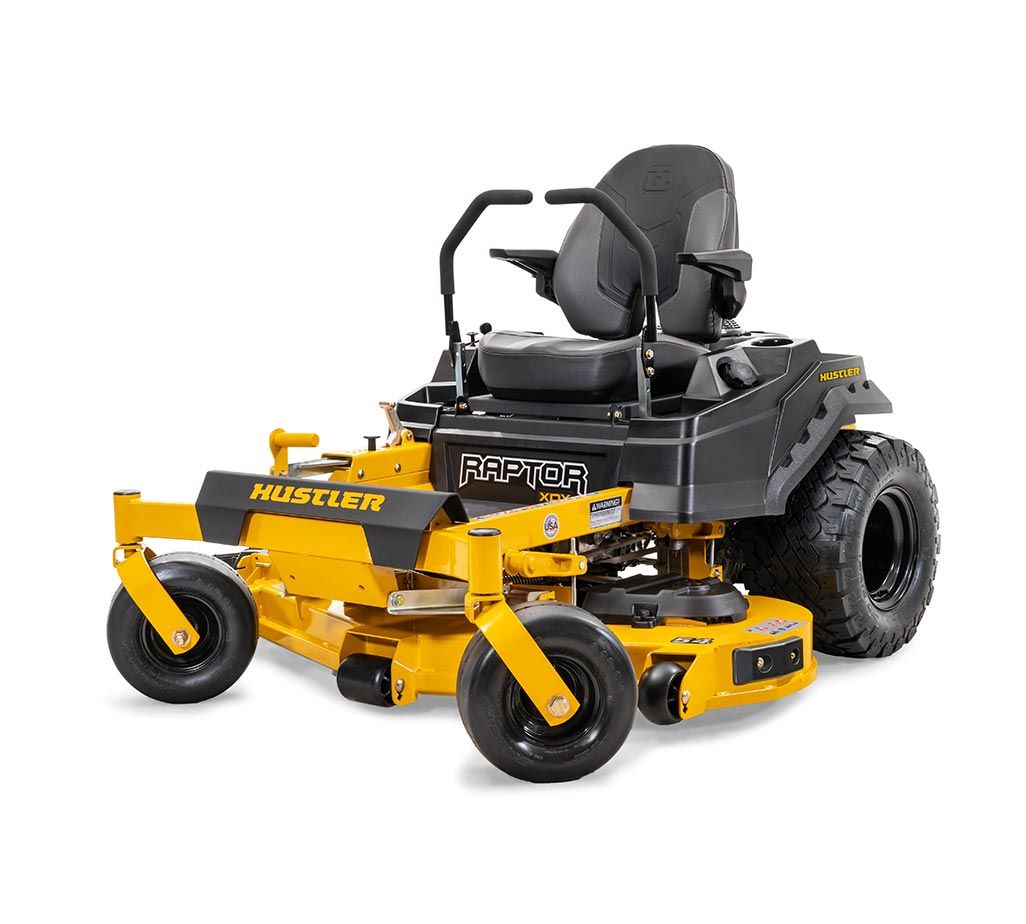

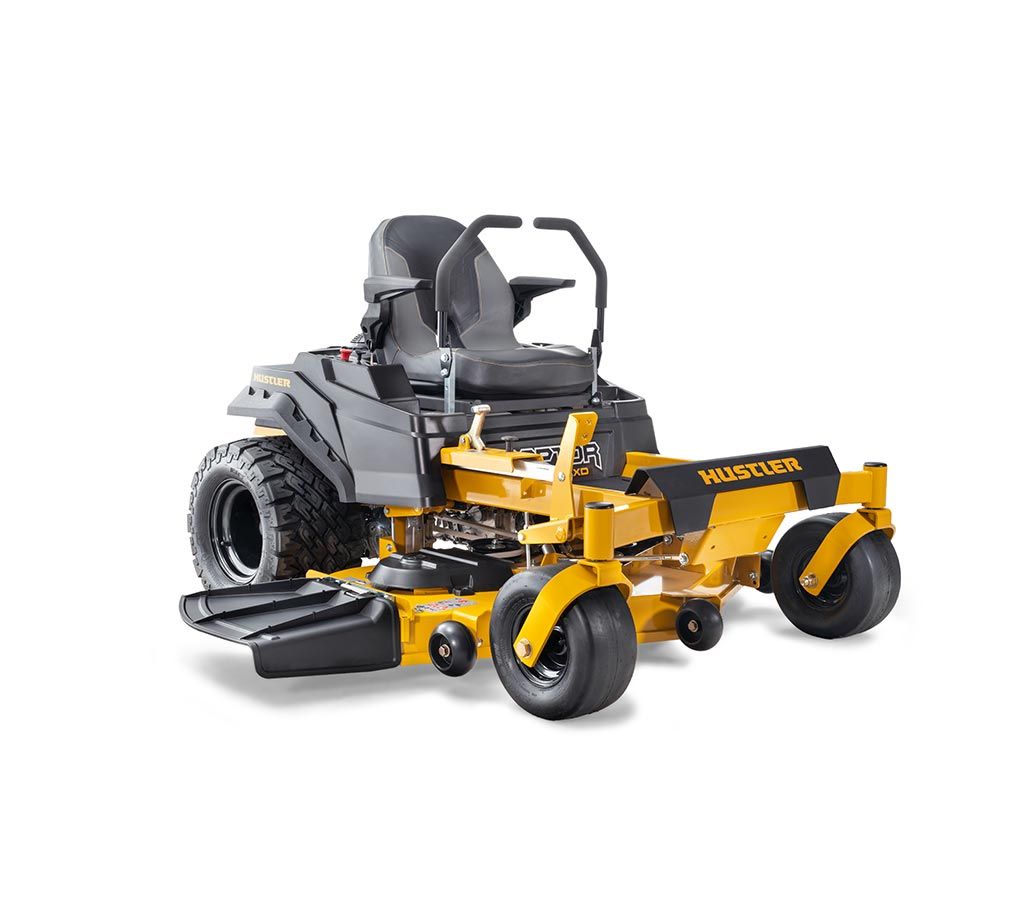

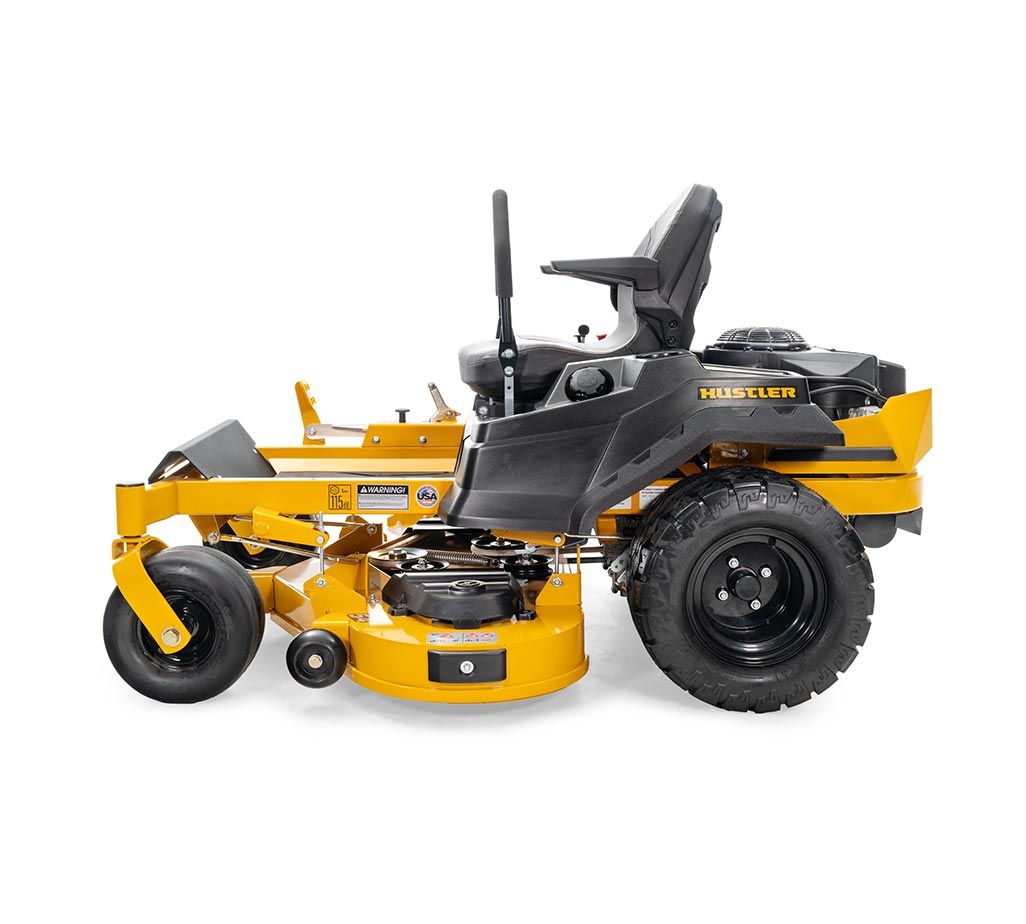

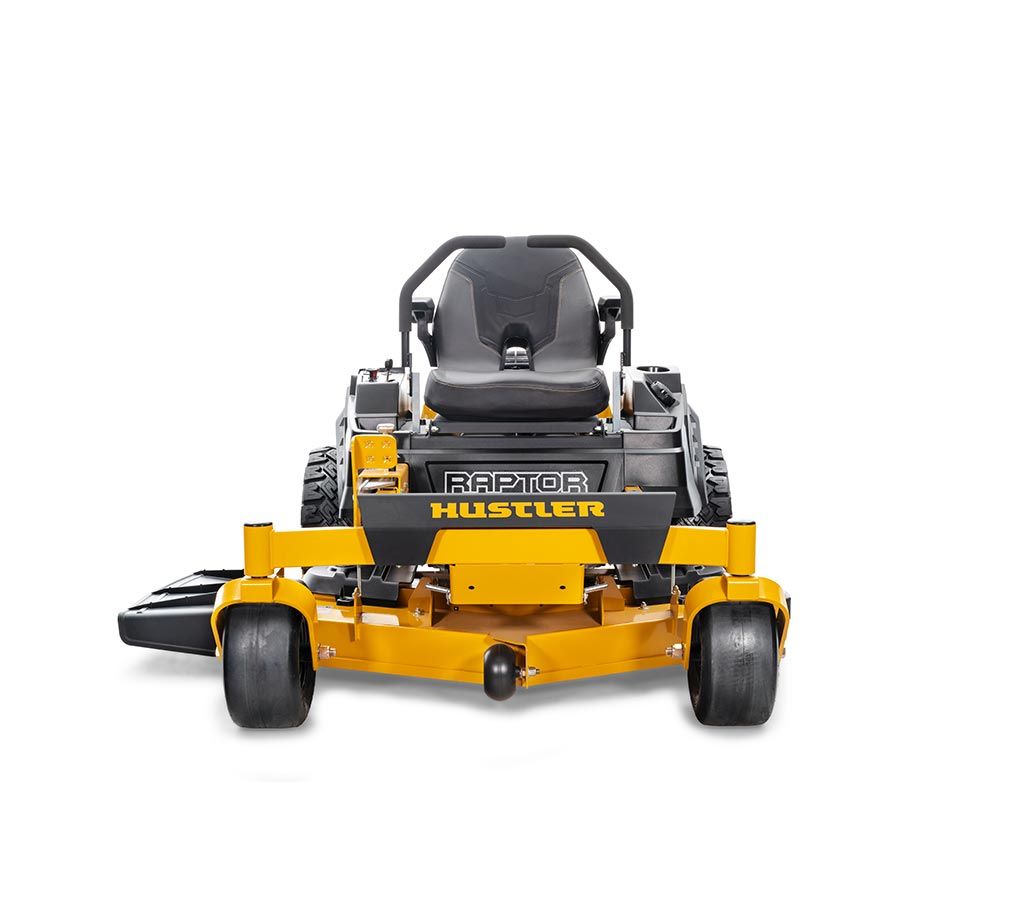

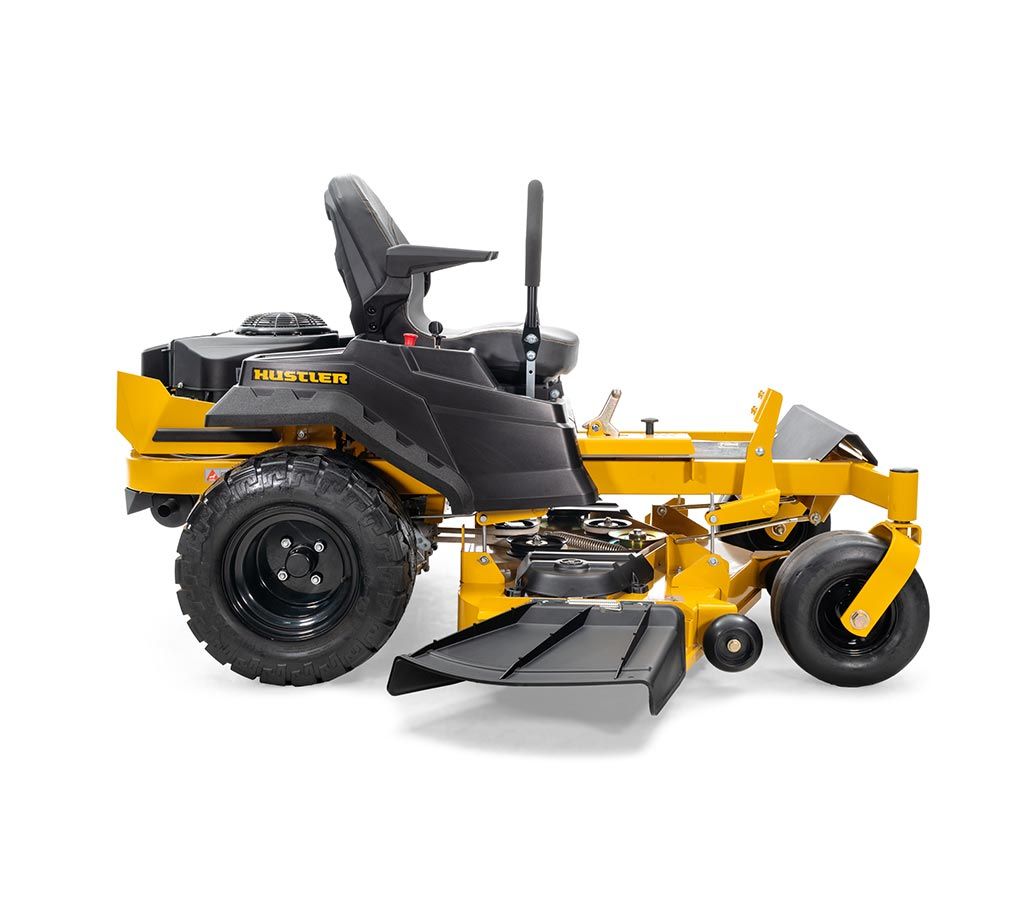

Hustler Raptor XD 54 Zero Turn Mower 939751EX
The Raptor XD is the ideal zero-turn for homeowners with up to five acres of property. Powered by a strong 23hp Kawasaki engine and with a tough 54 inch fabricated cutting deck.
Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a crisp, clean cut-quality. Raptor XDs are backed by a 3yr / 300hr limited warranty.
- 54" Cutting Width
- 3.2 Acres per Hour
- 23HP Kawasaki Engine
- 3 Year, 300 Hour Commercial Warranty
Take a seat on the comfortable high-back seat with padded armrests, and effortlessly mow for extended periods without feeling fatigued. The foot-operated deck lift system allows you to easily adjust the cutting height while remaining seated, making it effortless to adapt to changes in terrain and grass length.
With its zero turn radius, the XD 54 offers unparalleled manoeuvrability, allowing you to navigate around obstacles and turn in tight spaces, making it ideal for both residential and small commercial areas.
The intuitive control panel puts all the necessary functions within reach, allowing you to focus on the task at hand and complete the job quickly.
Built with a sturdy steel frame and tough 54 inch fabricated cutting deck, the Hustler XD 54 is designed to last.
Its removable foot pan provides easy access to the belts and pulleys, making maintenance a breeze.
Experience the difference of the Hustler XD 54 zero turn mower, and enjoy a more comfortable and effortless lawn care experience!
* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
| Deck Width & Construction |
54 Inch 11 Gauge Fabricated Cutting Deck
|
|
Blades & PTO
|
3 Blades with electric PTO blade engagement
|
|
Spindles
|
Aluminum with 7 gauge spindle mounts, 1” shaft and double lip sealed ball bearings
|
|
Cutting Height & Adjustment
|
1.5" - 4.5" cutting range with foot assisted deck height adjustment
|
|
Optional Extras
|
Optional Mulch Kit, Optional Catcher Kit
|
|
Ground Speed
|
12 Km/h Ground Speed
|
|
Acres per hour
|
3.2 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
|
|
Fuel Tank Capacity
|
11 L
|
|
Slope Capability
|
15 Degrees
|
|
Engine Type & Specifications
|
23HP Kawasaki FR691V Engine. Air cooled. 726cc.
|
|
Engine Warranty
|
3 Year Engine Warranty
|
|
Transmission Type & Specifications
|
Dual Hydro Gear ZT2800 Hydro Transmissions
|
|
Country of Manufacture
|
Made in the USA
|
|
Chassis Construction
|
1.5" x 3" Welded Tubular Steel Frame
|
|
Rear Wheels & Tyres
|

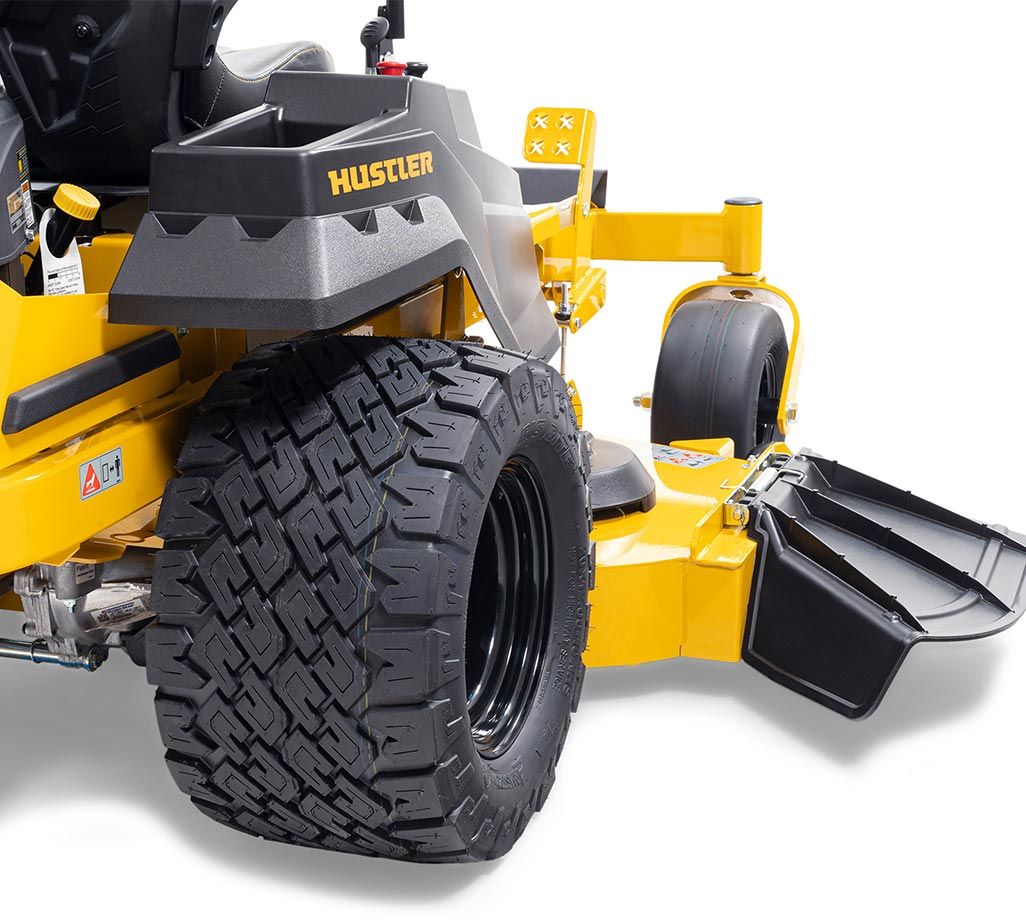

20" x 8" Rear Tyres
|
|
Front Wheels, Tyres & Castors
|
13" x 6.5" Front Tyres
|
|
Seat Type
|
Bolstered Mid Back Seat with Armrests
|
|
Console Features
|
Cup Holder
|
|
Park Brake
|
Automatic Park Brake
|
|
Suspension
|
Optional Flex Fork Front Suspension
|
|
Maintenance Access
|

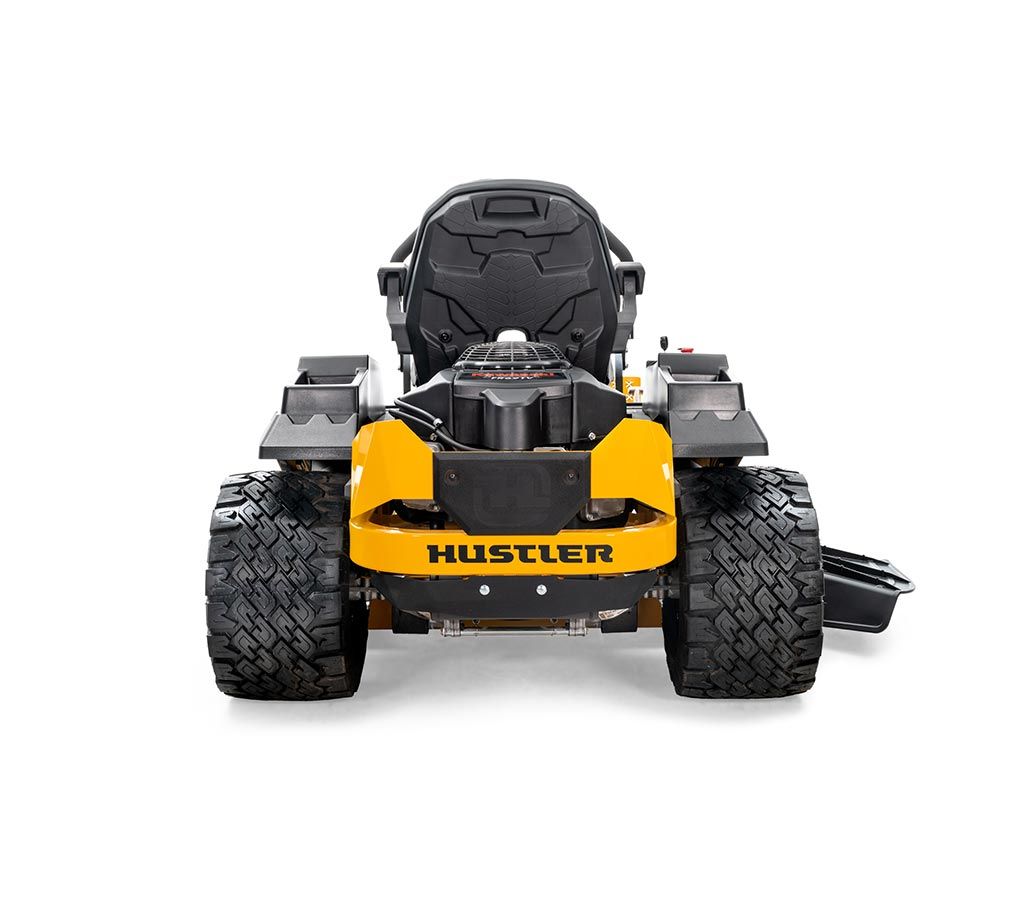

Open rear design for easy engine maintenance
|
|
Tow Hitch
|
Optional Tow Hitch
|
|
Minimum Trailer Size
|
5 ft wide, 7 ft Long
|
|
Length
|
1806 mm
|
|
Width (Chute up)
|
1486 mm (Chute up)
|
|
Height (ROPS up & down)
|
1110 mm
|
|
Weight
|
296 kg
|
|
Residential Warranty
|
3 Year / 300 Hr Domestic warranty
|
|
Commercial Warranty
|
3 Year / 300 Hr Commercial Warranty
|
