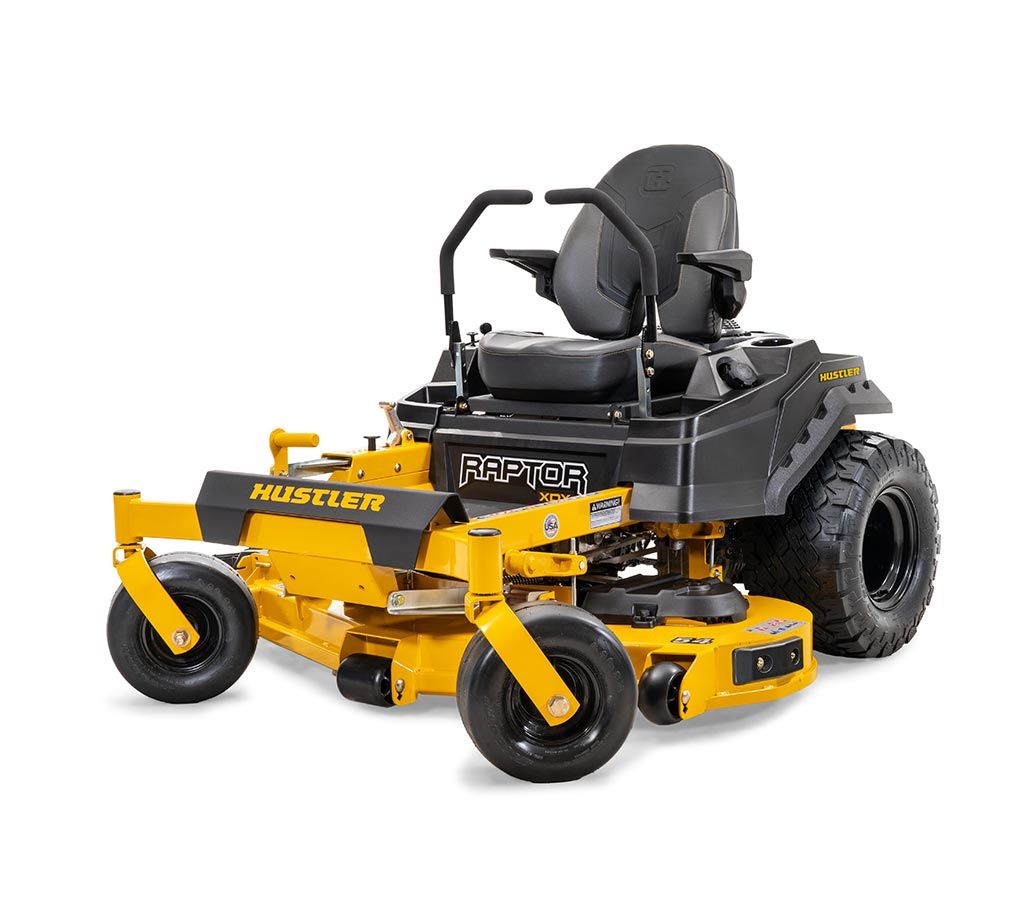

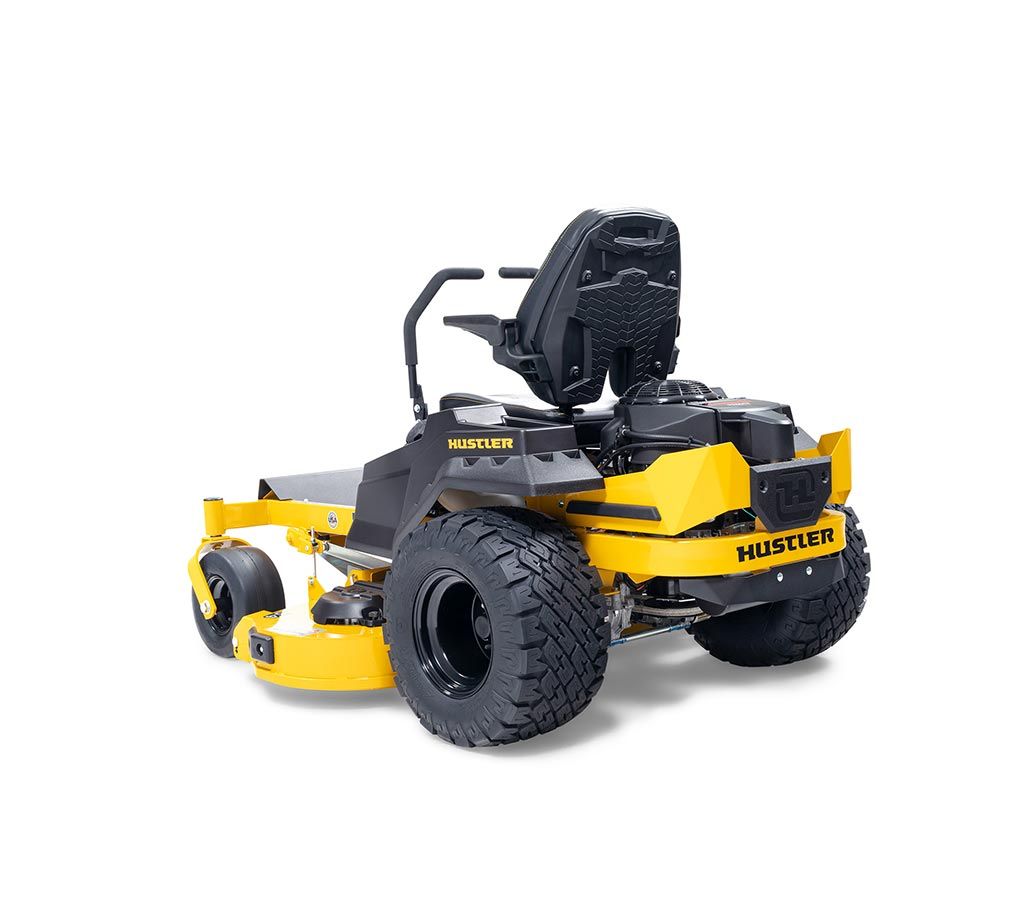

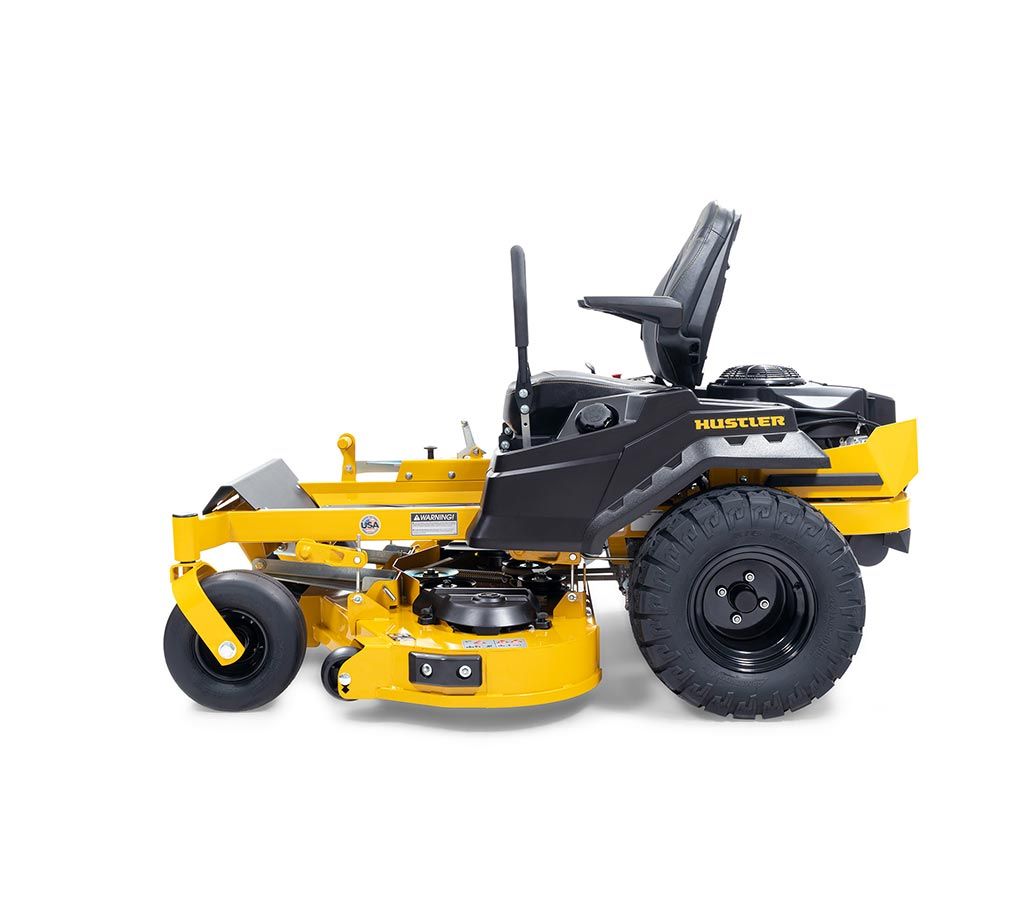

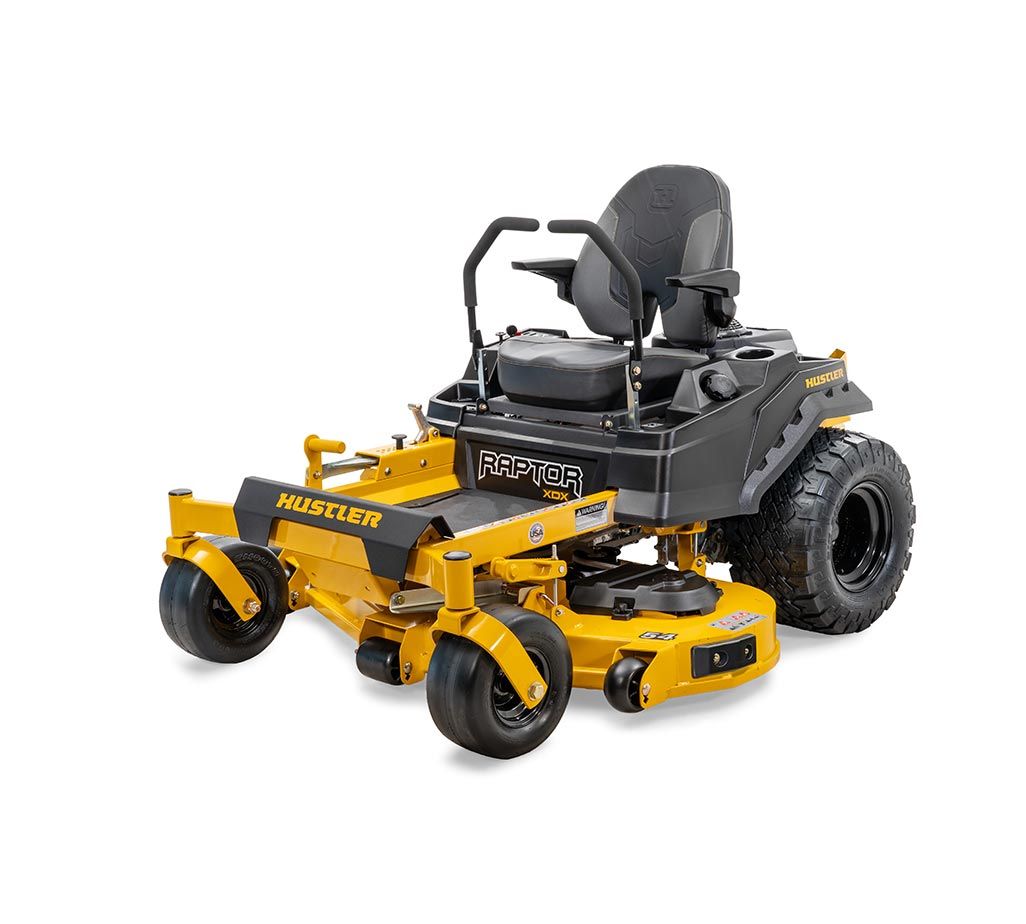

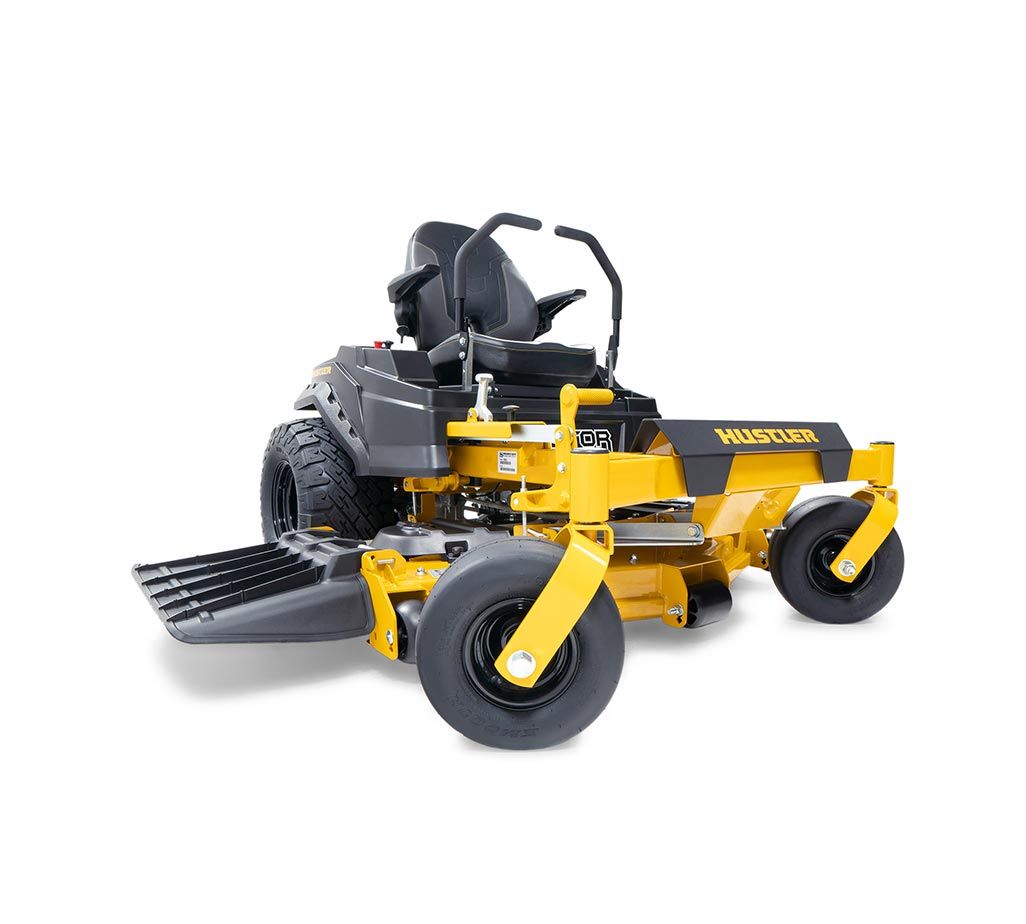

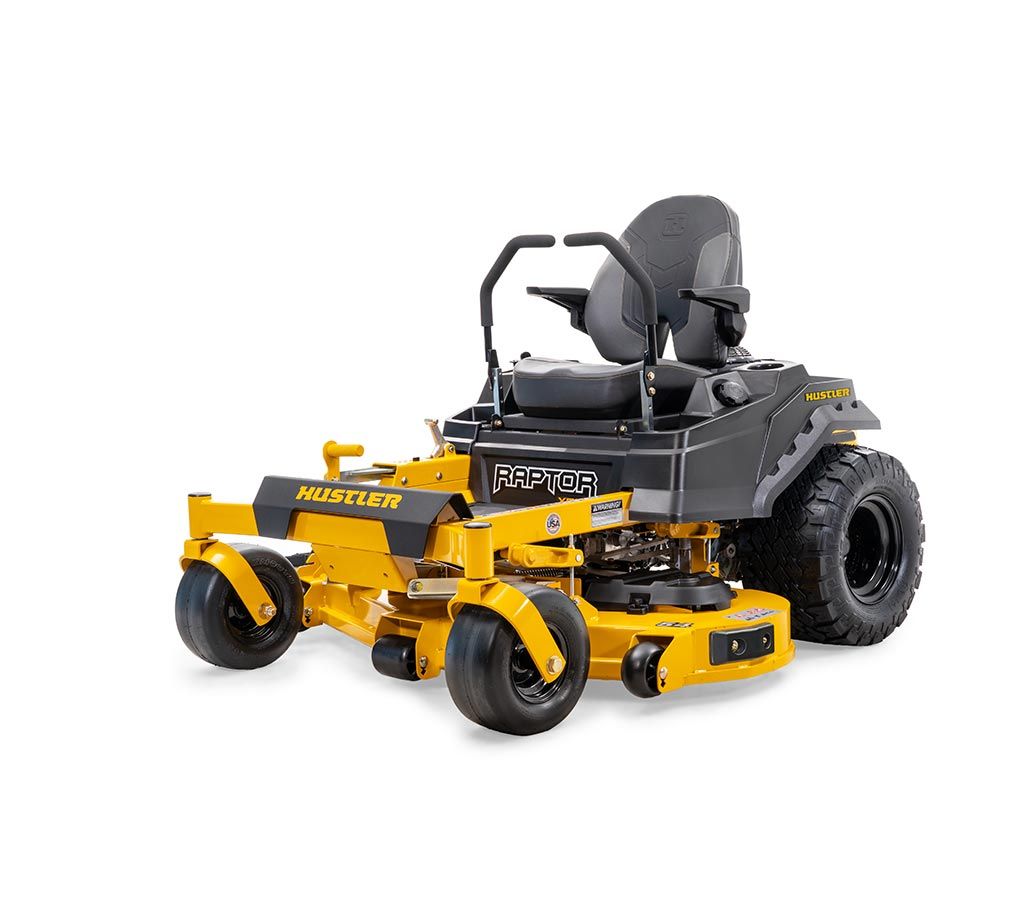

Hustler Raptor XDX 48 Zero Turn Mower 941492EX
The Raptor XDX has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and toolless removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions.
The 5-inch-deep deck is designed to allow for mowing through thick grass at top speeds.
- 48" Cutting Width
- 3.1 Acres per Hour
- 23HP Kawasaki Engine
- 3 Year, 400 Hour Commercial Warranty
Powered by a 23HP Kawasaki V-Twin engine, this mower effortlessly takes on any mowing challenge, making lawn care a breeze.

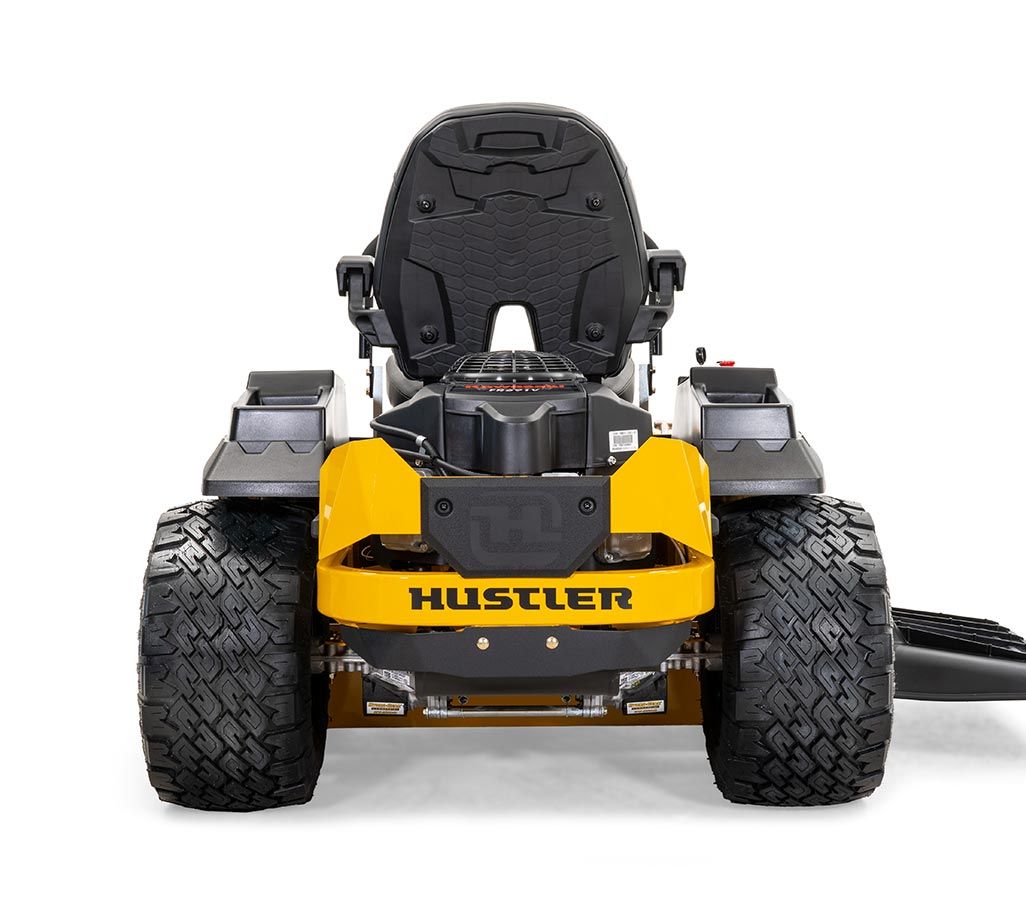

The high-back seat and padded armrests provide maximum comfort, enabling you to mow for extended periods without feeling fatigued. The foot-operated deck lift system allows you to adjust the cutting height while seated, making it effortless to adapt to changes in terrain and grass length.
With its zero turn radius, the Raptor XDX 48 offers exceptional manoeuvrability, allowing you to effortlessly navigate around obstacles and turn in tight spaces. Its intuitive control panel puts all the necessary functions within reach, allowing you to focus on the task at hand and complete the job quickly.

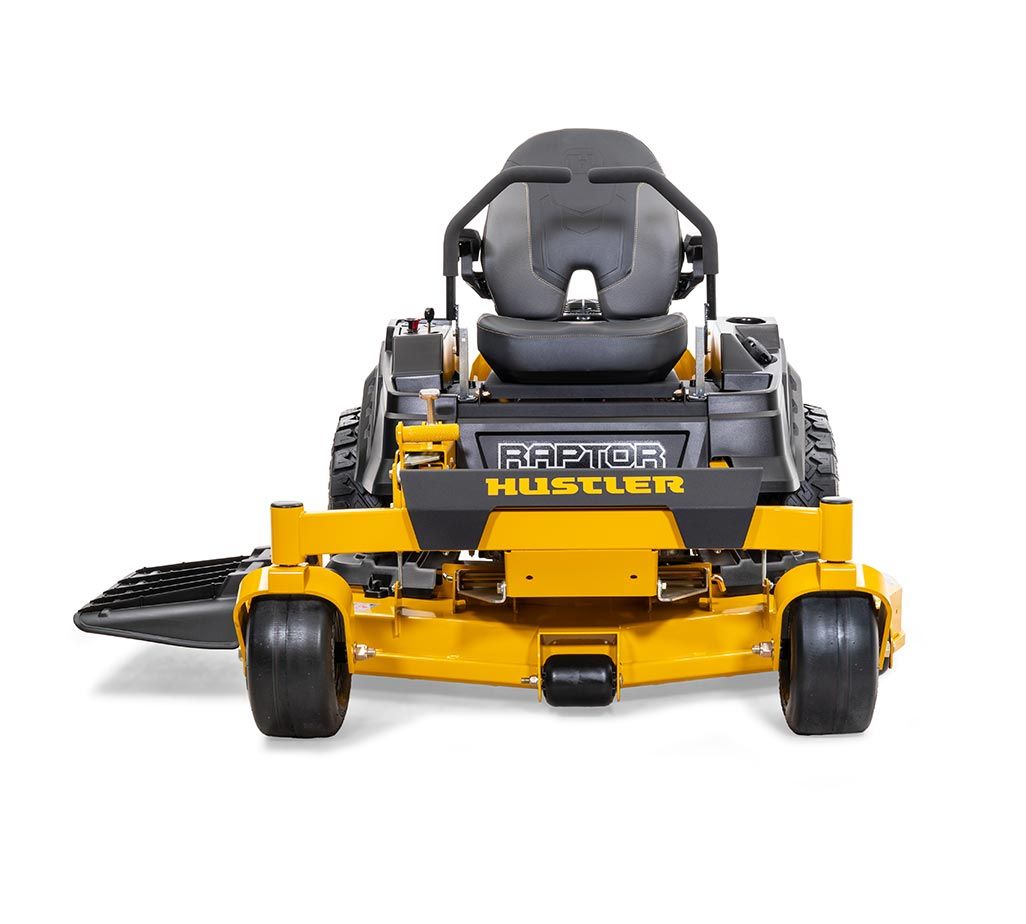

With a tough steel frame and commercial grade 48-inch fabricated cutting deck, the Raptor XDX 48 is a durable machine built to last. Backed by a 3 year commercial warranty, the Raptor XDX 48 is suited to both demanding property owners and commercial lawn mowing contractors
Its removable foot pan provides easy access to the belts and pulleys, simplifying maintenance.
Experience the Hustler Raptor XDX 48, the ultimate zero turn mower that makes lawn care a comfortable and effortless experience.
* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
| Deck Width & Construction |
48 Inch 10 Gauge Fabricated Cutting Deck
|
|
Blades & PTO
|
3 Blades with electric PTO blade engagement
|
|
Spindles
|
Aluminum with 11 gauge spindle mounts, 1” shaft and double lip sealed ball bearings
|
|
Cutting Height & Adjustment
|
1.5" - 4.5" cutting range with foot assisted deck height adjustment
|
|
Optional Extras
|
Optional Mulch Kit, Optional Catcher Kit
|
|
Ground Speed
|
12.9 Km/h Ground Speed
|
|
Acres per hour
|
3.1 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
|
|
Fuel Tank Capacity
|
11 L
|
|
Slope Capability
|
15 Degrees
|
|
Engine Type & Specifications
|
23HP Kawasaki FR691V Engine. Air cooled. 726cc.
|
|
Engine Warranty
|
3 Year Engine Warranty
|
|
Transmission Type & Specifications
|
Dual Hydro Gear ZT3100 Hydro Transmissions
|
|
Country of Manufacture
|
Made in the USA
|
|
Chassis Construction
|
1.5" x 3" Welded Tubular Steel Frame
|
|
Rear Wheels & Tyres
|

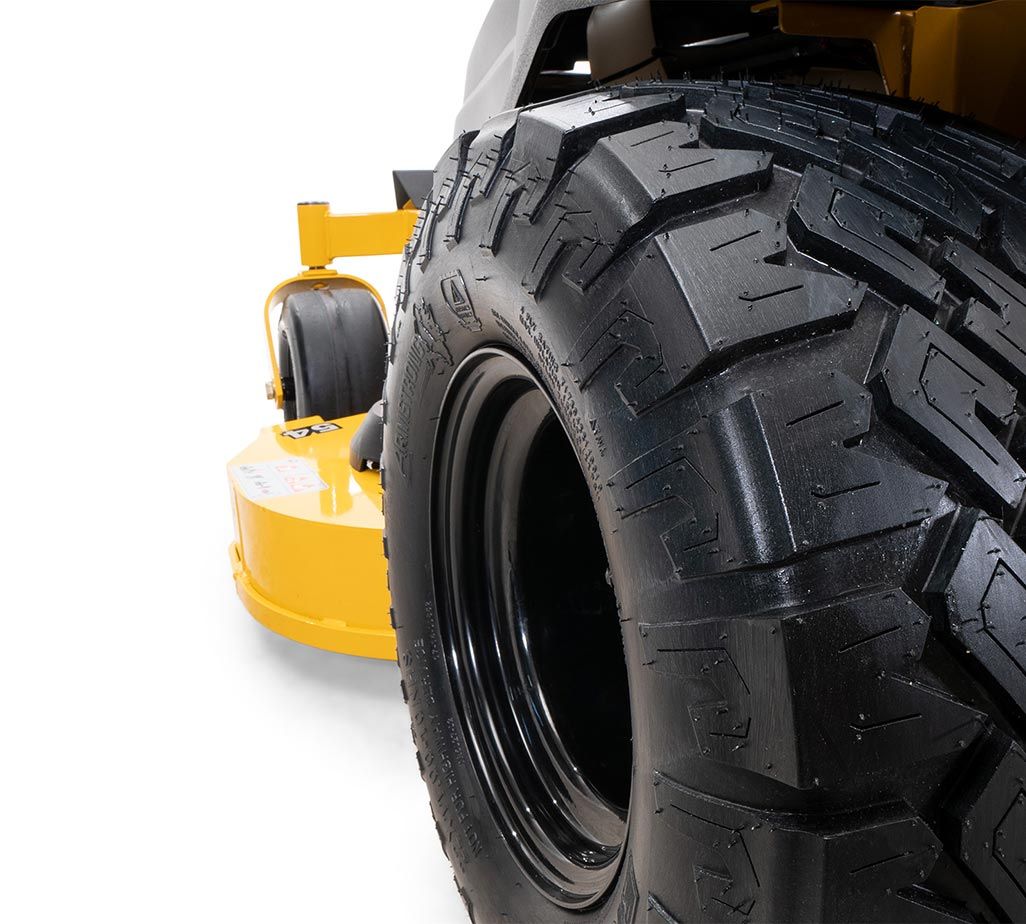

22" x 9.5" Rear Tyres
|
|
Front Wheels, Tyres & Castors
|
13" x 6.5" Front Tyres
|
|
Seat Type
|
Bolstered Extra High Back Seat with Armrests
|
|
Console Features
|
Cup Holder
|
|
Park Brake
|
Automatic Park Brake
|
|
Suspension
|
Optional Flex Fork Front Suspension
|
|
Maintenance Access
|
Open rear design for easy engine maintenance
|
|
Tow Hitch
|
Optional Tow Hitch
|
|
Minimum Trailer Size
|
5 ft wide, 7 ft Long
|
|
Length
|
1806 mm
|
|
Width (Chute up)
|
1285 mm (Chute up)
|
|
Height (ROPS up & down)
|
1110 mm
|
|
Weight
|
293 kg
|
|
Residential Warranty
|
3 Year / 400 Hr Domestic warranty
|
|
Commercial Warranty
|
3 Year / 400 Hr Commercial Warranty
|
