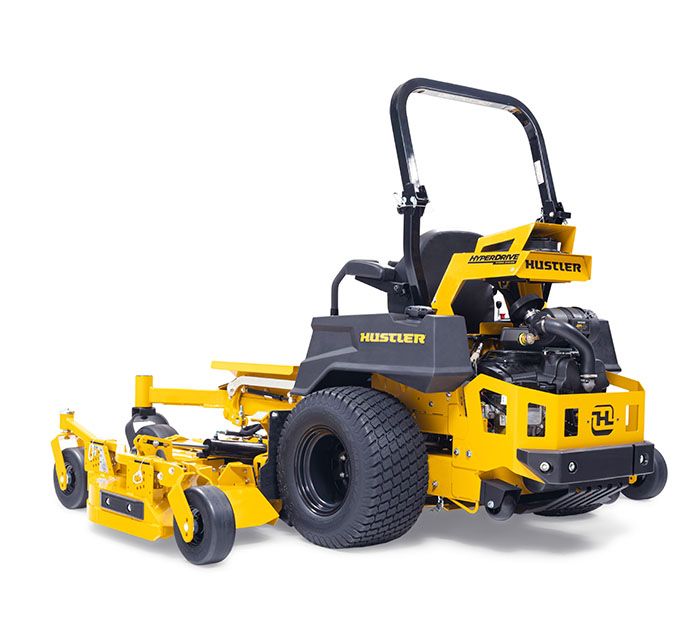

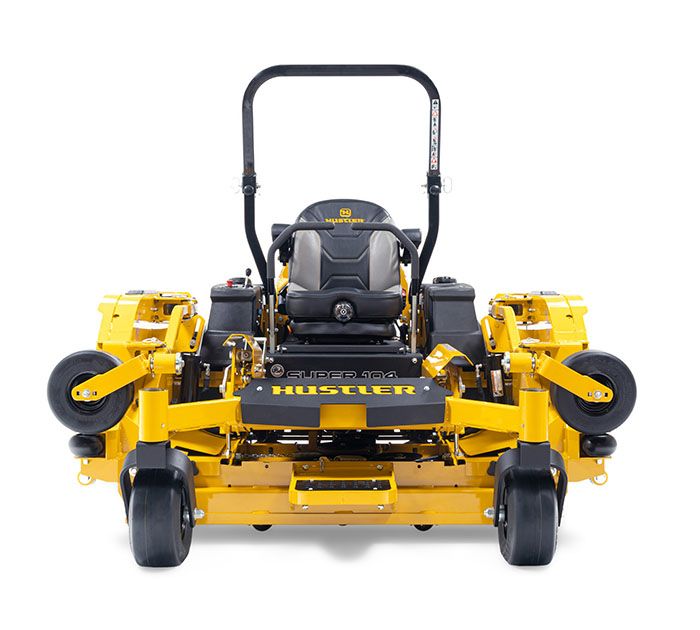

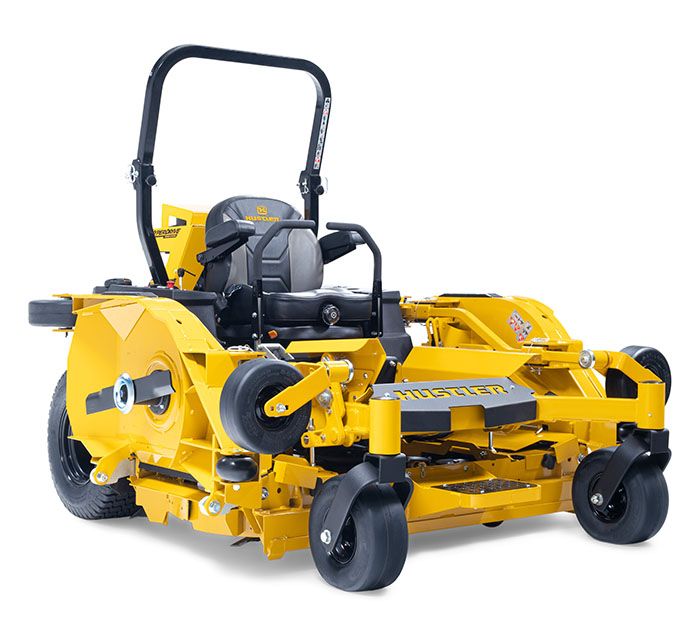

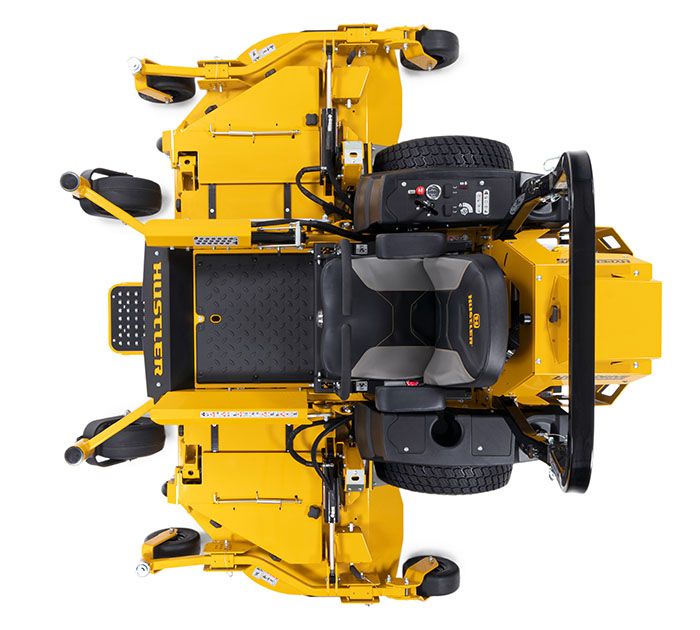

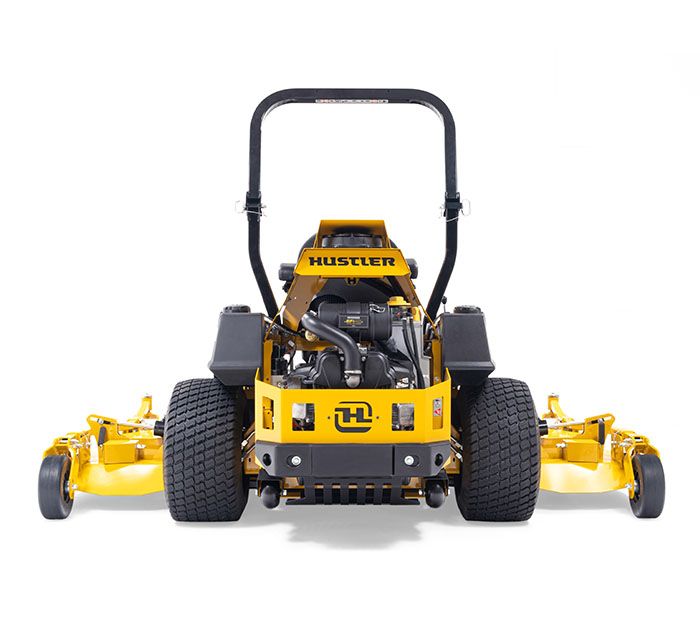

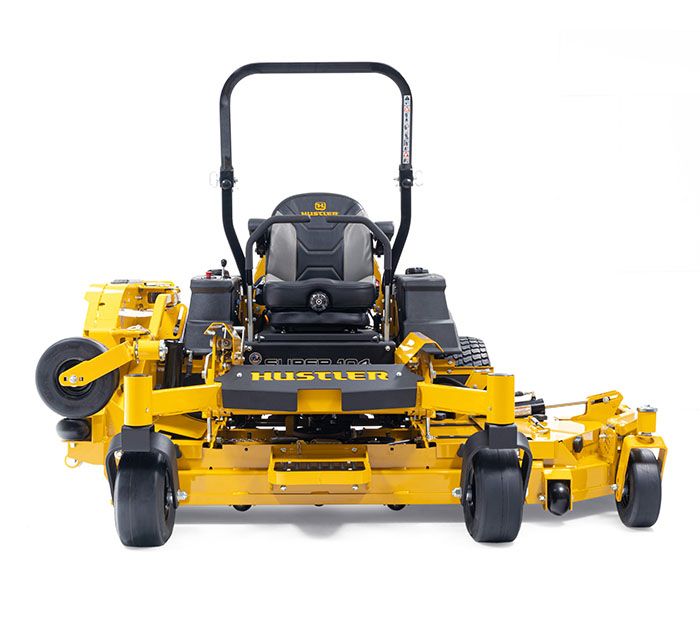

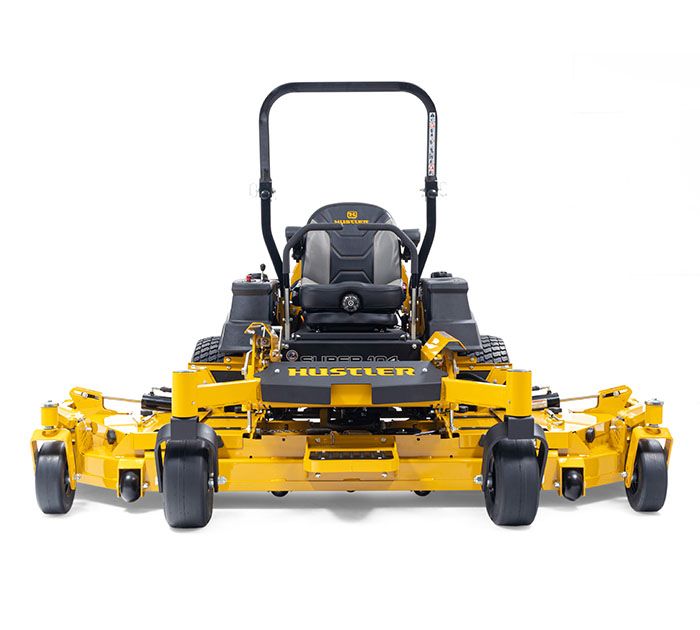

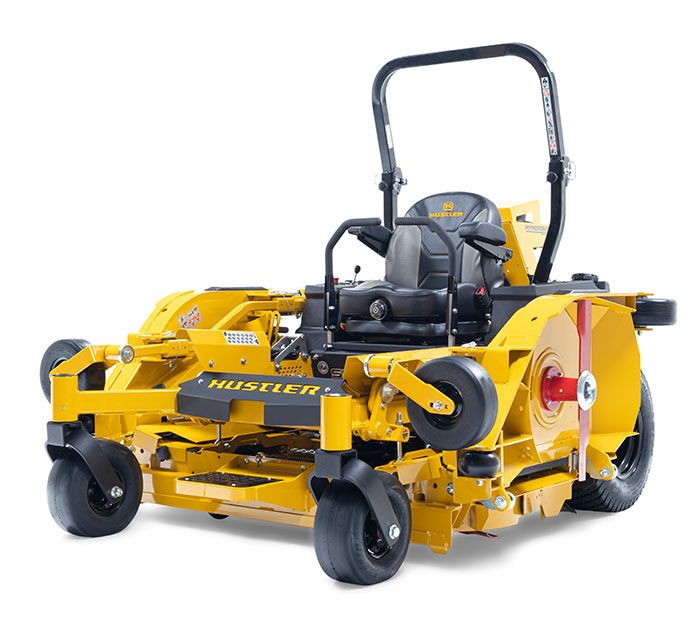

Hustler Super 104 Zero Turn Mower 943217EX
Wide area mowing with Zero Turn manoeuvrability.
With its fast 17.7 km/h ground speed and huge 104" mowing width, the Hustler Super 104 delivers immense productivity.
Complete with hydraullic fold-up deck for easy transport, the Super 104 is a flexible wide area mowing solution for commercial and fleet mowing contractors.
- 104" Cutting Width
- 9.2 Acres per Hour
A true no-compromise wide area Zero Turn mower, the Hustler Super 104 delivers unrivalled productivity.
Offering a fast 17.7 km/h ground speed and huge 104" mowing width, the Hustler Super 104 cuts more grass in less time, while the industrial grade hydro transmissions, and huge 44.3L fuel tank, mean you can stay in the seat mowing for longer and get more done than you ever thought possible.
Operator comfort is second to none with a deluxe high back suspension seat, effortless hydraullic deck lift, SmoothTrak Steering and handy oversized cup holder ensuring every shift is a comfortable one.
With a cutting deck that folds up to an 80" width for for easy site access and transport, the Super 104 also offers immense flexibility, with it's ability to be loaded onto a standard 7" wide tandem trailer and towed with a standard ute or van.
The Hustler Super 104 is simply an essestial machine for any large area mowing contractor who wants a stress free solution for getting more mowing done in less time.
* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
| Deck Width & Construction |
104 Inch Cutting Deck. Fabricated 11 Gauge steel with reinforced trim. 4 x supporting castor wheels and anti-scalp rollers.
|
|
Blades & PTO
|
5 Blades with electric PTO blade engagement
|
|
Spindles
|
Cast iron with 7 gauge steel spindle mounts and 1" steel shaft. Greasable, with double lip sealed ball bearings.
|
|
Cutting Height & Adjustment
|
1" - 5.5" cutting range with foot assisted deck height adjustment
|
|
Optional Extras
|
Optional Mulch Kit
|
|
Ground Speed
|
17.7 Km/h Ground Speed
|
|
Acres per hour
|
9.2 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
|
|
Fuel Tank Capacity
|
44.3 L
|
|
Slope Capability
|
15 Degrees
|
|
Engine Type & Specifications
|
38.5HP Kawasaki FX1000V Engine. Air cooled. 999cc.
|
|
Engine Warranty
|
3 year Engine Warranty
|
|
Transmission Type & Specifications
|
Dual Danfoss DDC-20 Hydro Transmissions
|
|
Wheel Motors
|
Parker TG0360 Wheel Motors
|
|
Country of Manufacture
|
Made in the USA
|
|
Chassis Construction
|
1.5" x 3" Welded Tubular Steel Frame
|
|
Roll Over Protection
|
Standard Roll Over Protection Bar
|
|
Rear Wheels & Tyres
|
26" x 12" Rear Tyres
|
|
Front Wheels, Tyres & Castors
|
15" x 6" Front Tyres
|
|
Seat Type
|
Deluxe High Back I3M Suspension Seat with Armrests
|
|
Console Features
|
Cup Holder
|
|
Park Brake
|
Automatic Park Brake
|
|
Maintenance Access
|
Open rear design for easy engine maintenance
|
|
Tow Hitch
|
Optional Tow Hitch
|
|
Minimum Trailer Size
|
7 ft wide, 9 ft Long
|
|
Length
|
2426 mm
|
|
Width (Chute up)
|
2032 mm (Wings up), 2695 mm (Wings down / Chute up)
|
|
Height (ROPS up & down)
|
1816 mm (ROPS up). 1372 mm (ROPS down)
|
|
Weight
|
1134 kg
|
|
Residential Warranty
|
5 Year / 500 Hr Domestic warranty
|
|
Commercial Warranty
|
2 Year, No Hour Limit Commercial Warranty
|
