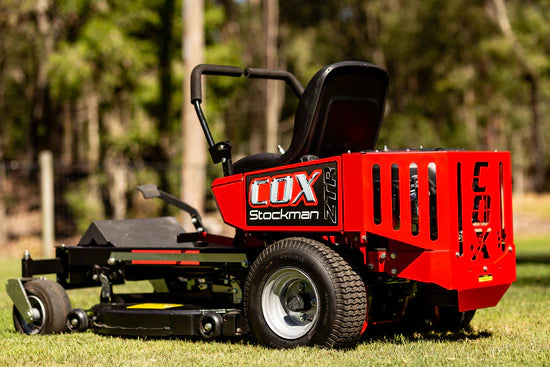

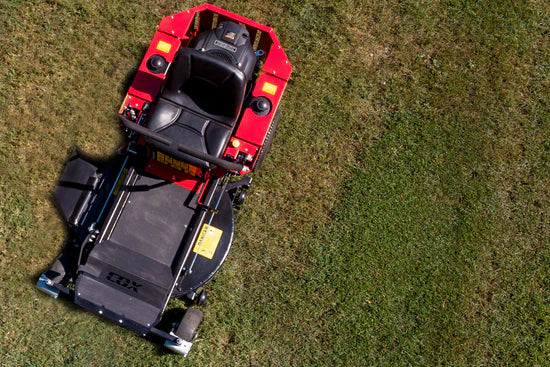

Cox ZTR Ride on Mowers - COX Compact 24hp 35" V Twin, ZT-2200 (CZ24C35)
Our Compact ZTR 35 will easily fit through most backyard entrances, as it measures only 940mm wide (35" model).
At last, a Zero Turn mower that excels at both taming thick grass and nurturing your lawns! The Compact ZTR 35 effortlessly navigates through standard backyard entrances, measuring a mere 940mm in width (35″ Model).
Enjoy the exceptional cutting performance akin to our renowned COX ride-on mower range, enhanced by the convenience of lever-controlled steering that practically lets you pivot in place.
5 Features of the Compact ZTR 35
Dual Fuel Tanks For Up To 9 Hours Of Continuous Mowing.
Hand Controlled Twin Levers Allow The Operator To Change Direction For Greater Operator Control.
Full-Length Robotically Welded Frame Design Has High-Strength Steel Rails For Added Strength And Long Life.
Unique Pivoting Front Axle Gives Increased Traction And Stability.
Fabricated Height Adjustment With Foot Assist For Quick Lift Over Obstacles And Low Effort Height Adjustment.
| ENGINE | Â |
| CZ24C35 | COX Compact 24hp 35" V Twin, ZT-2200 |
| CZ24C42 | COX Cruiser 24hp 42" V Twin, ZT-3100 |
| CZ26C48 | COX Cruiser 26hp 48" V Twin EFI, ZT-3100 |
| CZ26C52 | COX Cruiser 26hp 52" V Twin EFI, ZT-3100 |
| Cylinders | V-Twin |
| Displacement | 680cc |
| Oil Capacity | 2.0LT |
| Engine Warranty | 3 Years COX Conditional |
| DRIVE | Â |
| Drive Model | Tuff Torqâ„¢ K46 |
| Drive Warranty | 2 Years Conditional |
| Ground Speed | FWD 0-10KPH/REV 0-6KPH |
| CUTTING SYSTEM | Â |
| Cutter Deck Width | 35" (890mm) |
| Blade Engagement | Ogura Electromagnetic Clutch |
| Cutter Belt Type | Premium B-Section |
| Height Range | 20mm-100mm |
| Blade Type | Heavy Duty Swing Back |
| CHASSIS | Â |
| Tyres | 11x400x5 (F) - 18x6.50-8 (R) |
| Seat | Premium High Back Seat |
| Seat Adjustment | Fingertip Adjustment |
| Hour Meter | Standard |
| Construction | Fabricated Steel |
| DIMENSIONS | Â |
| Length | 1900mm |
| Width | 940mm |
| Weight | 239kg |
| Warranty | 5 Years Conditional |
