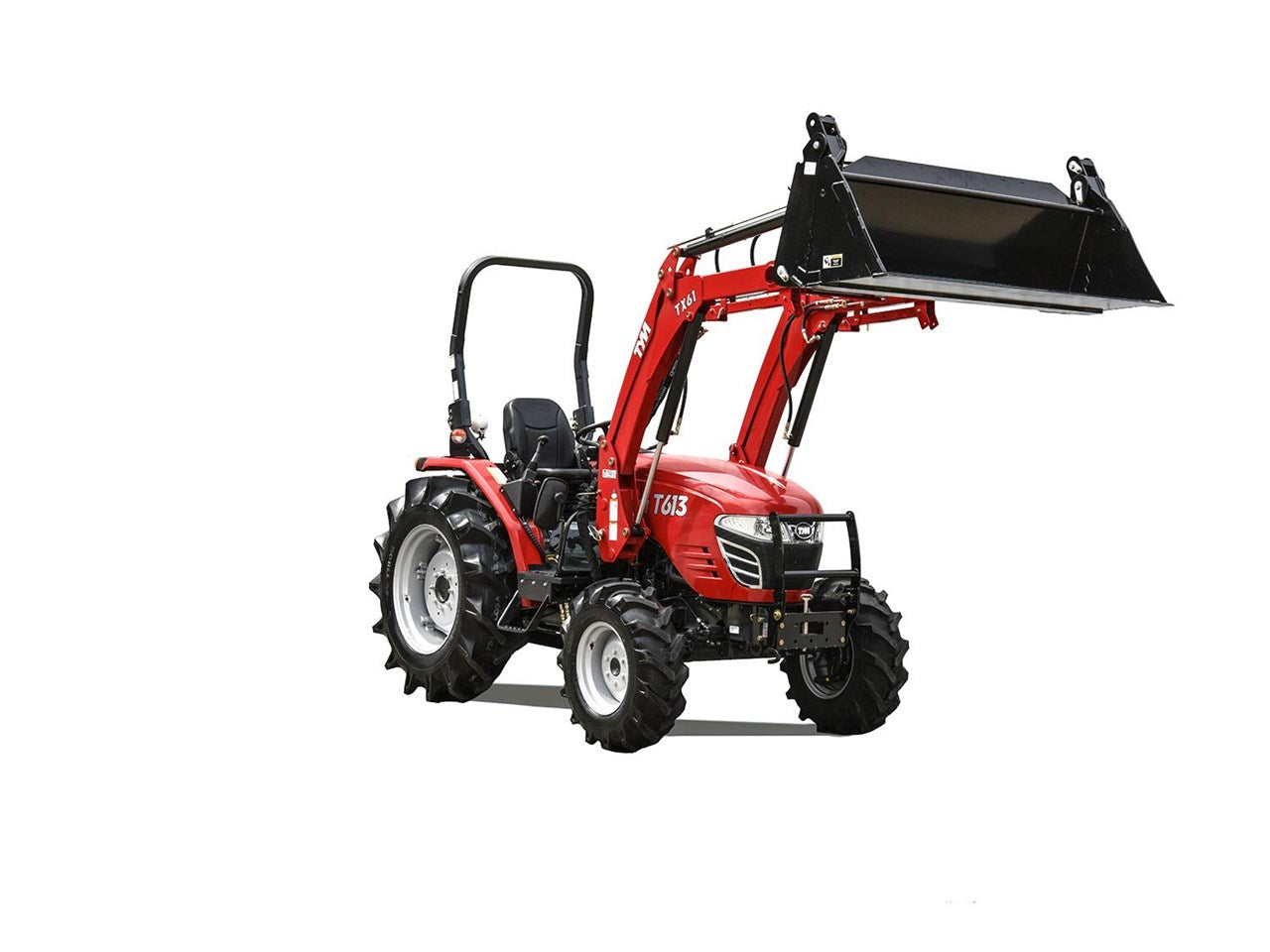

The TYM T613 Manual 12/12 4WD ROPS Utility Tractor is built to tackle the toughest agricultural, landscaping, and commercial tasks with power and precision. Powered by a robust 60hp diesel engine, this tractor is designed for heavy-duty jobs such as plowing, tilling, hauling, and mowing. Its 4WD capability ensures excellent traction on rough and uneven terrain, while the 12/12 manual transmission allows for smooth, controlled operation. The ROPS (Roll Over Protection Structure) adds an extra layer of safety, making it ideal for challenging tasks in rugged environments.
Key Features:
- 60hp Diesel Engine: Delivers powerful performance for demanding tasks.
- 12/12 Manual Transmission: Offers precise control and smooth gear transitions for efficient operation.
- 4WD Capability: Provides superior traction and stability on tough terrains.
- ROPS (Roll Over Protection Structure): Enhances operator safety during heavy-duty tasks.
- Versatile PTO System: Compatible with a wide range of attachments for mowing, tilling, hauling, and more.
- Durable Build: Designed for long-lasting performance and reliability in challenging environments.
With its powerful engine, versatile transmission, and safety features, the TYM T613 Manual 12/12 4WD ROPS Utility Tractor is the perfect choice for professionals and property owners looking for a reliable and efficient machine for heavy-duty work.
FEATURES OF THE TYM 'T613' FRONT END LOADER |
|
CONSTRUCTION |
|
|
|
|
|
|
|
|
|
|
FEATURES |
|
|
|
|
|
|
|
ATTACHMENT |
|
|
|
|
|
|
|
CONTROLS |
|
|
|
|
Specifications and design are subject to change without notice. These specifications are a general guide. |
|
Specifications
| Engine Type | TYM |
| Number of Cylinders | 4 |
| Engine Power (hp/kW) | 60/44.1 |
| Engine Torque (Nm) | Â |
| Transmission Type | Synchro |
| Number of speeds | 12 |
| Number of Transmission Ranges | 3 |
| Maximum Speed (km/h) | 33 |
| PTO Speed (rpm) | 540/540E |
| Independent Push Button PTO engagement |  |
| 3-point Linkage Lift Capacity (kg) | 1500 |
| Number of Hydraulic Remotes | 2 sets |
| 2 Post folding ROPS | |
| Integrated Joystick Control for Front-end Loader | |
| Weight - Tractor Only (kg) | 1,742 |
Â
| Loader model | TX61SL |
| Tractor models |
T613 ROPS, T613 CAB |
| A. Maximum lift height (mm) | 2,743 |
| B. Clearance with attachment level (mm) | 2,525 |
| C. Clearance with attachment dumped - 45 degrees (mm) | 2,028 |
| D. Reach at maximum height - 45 degrees (mm) | 377 |
| E. Maximum dump angle (degrees) | 56 |
| F. Reach with attachment on ground (mm) | 1,748 |
| G. Attachment rollback angle (degrees) | 48 |
| H. Digging depth below grade (mm) | 76 |
| J. Overall height in carry position (mm) | 1,523 |
| L. Depth of attachment - to back of inner shell (mm) | 536 |
| M. Height of attachment (mm) | 520 |
| N. Depth of attachment - to pivot pin (mm) | 726 |
| Lift capacity to full height of pivot pins (kg) | 1,148 |
| Breakout force at ground level, pivot pins (kg) | 1,652 |
| Rated operating load - counter weight on 3PL (kg) | 600 |
Features
- Powered by 60hp TYM 4 cylinder Diesel engine
- Quiet running engine certified to meet the stringent Tier III engine and noise emission standards
- 2286cc engine, resulting in high torque for serious work
- Dual dry element air cleaner for Australia's dusty conditions
- 50 litre fuel tank capacity will provide for many working hours
- Easy access from ground level
- The tractor weight of 1,742kg (ROPS version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
- 12 speed transmission with synchromesh for easy forward and reverse directional changes
- Shuttle shift with lever positioned under steering column
- 3 Ranges with range lever located to operator's right
- 0-33km/h maximum speed
- The heavy duty front axle performs in tough working conditions and handles loads with ease
- Rear axle with diff-lock for difficult traction situations
- 4WD and the diff-lock provides better traction, control and performance
- 4WD mode is controlled by a lever on the left hand side of the operator
- Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations
- Control for the linkage and hydraulic remotes are on the right-hand side
- Adjustable linkage lift speed
- 3-point linkage with quick attach lower link arms
- Linkage arms with simple pin adjustable sway position
- 3-point linkage with 1500kg lifting capacity gives the tractor great versatility and range of applications
- 2 sets of double-acting hydraulic remotes
- The PTO driveline is a simple and direct design for high efficiency and power
- The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation
- Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage
- Adjustable rear wheels to widen track width for steep conditions to improve stability
- Easy access with grab handles
- Uncluttered flat floor without trip hazards
- Rubber floor mat reduces noise and provides an easy to maintain surface
- Ergonomic design with easy to reach controls
- Easy to read instrument panel
- Combination switch controls lights and indicators
- Digital hour metre display
- Tiltable steering wheel
- Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)
- Adjustable suspension seat for comfort
- Rear working light
- 2 post folding ROPS protection
- Easy access to all maintenance areas including battery
- Pop-up 1 piece bonnet
- Radiator with screen to prevent clogging
- Level lift front-end loader ideal for materials handling and utility work around the farm
- Quick detach Euro hitch & loader parking stands
- Full details & specifications on the optional front end loader
- Choice of agricultural or industrial tyres
- Front weights available
